詳細情報 |
|||
| 溶接 プロセス: | MMA(セルロースダウンウェルディング)/TIG/ガウジング | エンジン: | 4気筒、空冷 |
|---|---|---|---|
| 発電機の出力: | 単相240V/4.5Kw | 溶接電流範囲: | 65-600A |
| 電極コード: | 2.5-10mm | 純重量: | 880kg |
| 保護クラス: | IP23 | モデル: | PW-2000 |
| 冷却方法: | 空冷 | 梱包サイズ: | 1835×925×1135mm |
| 燃料の種類: | ディーゼル | 燃料タンク: | 100L |
| エンジンブランド: | 美栄 F4L912 | 評価される使用率: | 60%/600A/44V |
製品の説明
Product Introduction:

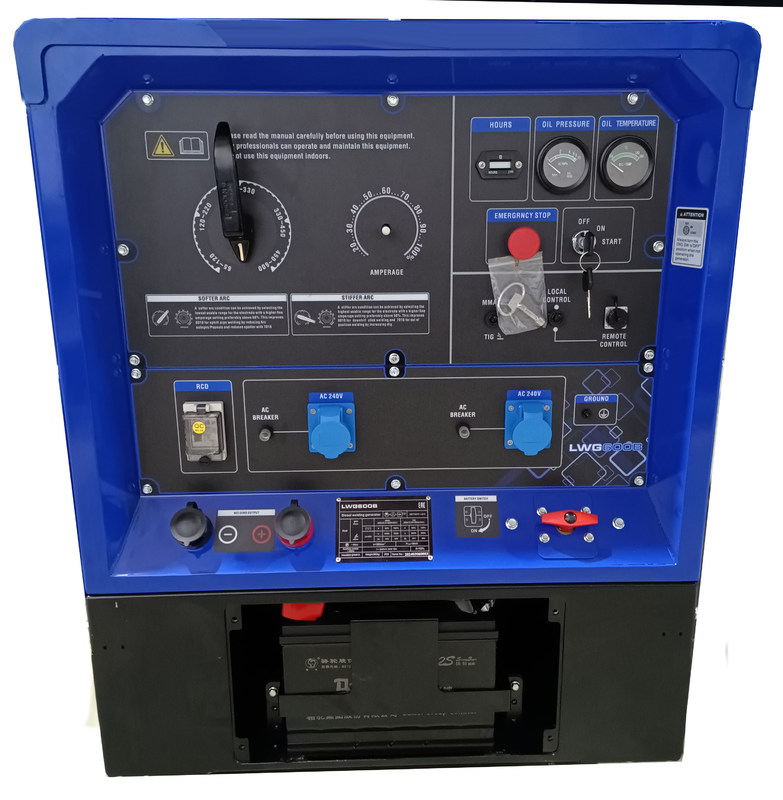

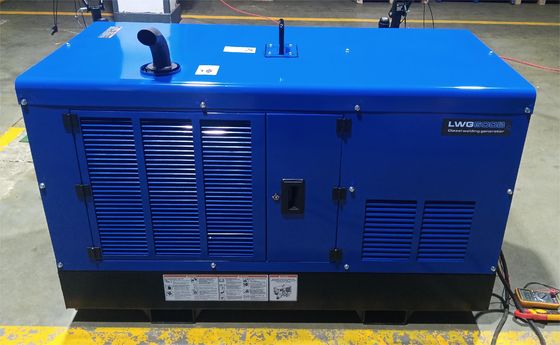

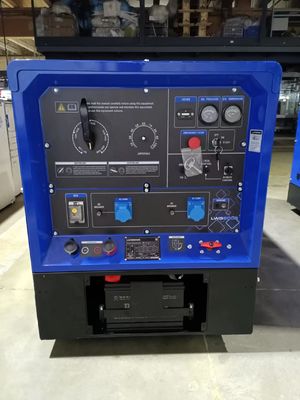

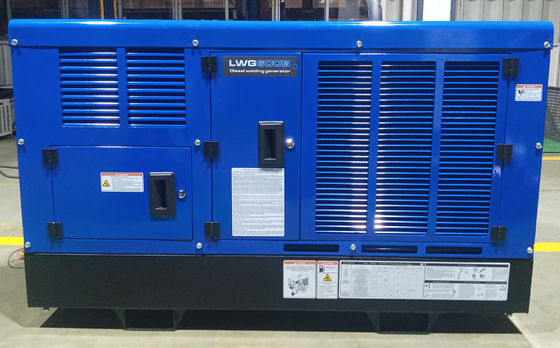

For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions,LWG600B Air-cooling Welding Generator is the most reliable, versatile machine available to keep your worksite equipment fully functional and make you more productive throughout the day.
Specification Sheet:
| Welding parameters | No-load voltage (V) | DC 90 | |
| Welding current adjustment range (A) | 65-600 | ||
| Rated voltage (V) | 44 | ||
| Rated duty cycle (%) | 60 | ||
| Electrode code (mm) | 2.5-10 | ||
| Auxiliary power output parameters | Number of phases | Single | |
| Rated frequency (HZ) | 60 | ||
| Rated voltage (V) | 120 | 240 | |
| Rated power (KW) | 2.0 | 4.1 | |
| Power factor | 1 | ||
| Rated current | 17 | 17 | |
| Engine parameters | Brand | Beinei | |
| Model | F4L912 | ||
| Engine type | Four-cylinder, in-line, naturally aspirated, air-cooled, four-stroke | ||
| Bore*stroke (mm) | 100*120 | ||
| Displacement (cc) | 3770CC | ||
| Compression ratio | 17:01 | ||
| Power/speed | Max:42kW/1800rpm；Rated:38kW/1800rpm | ||
| Max:35kW/1500rpm；Rated:32kW/1500rpm | |||
| Whole unit | Fuel tank | 100liters | |
| Dimension | 1724*823*1058mm | ||
| Weight | 880kg | ||
| Protection class | IP23 | ||
