詳細情報 |
|||
| 燃料の種類: | ガソリン | 実行時間: | 8時間 |
|---|---|---|---|
| 寸法: | 530×330×560mm | 梱包数量: | 188/480セット 20GP/40HQ |
| 定格出力電流: | 9.5A/18.3A | 燃料タンク容量: | 5L |
| 正味重量: | 18kg | 燃料タンク: | 4L |
| 最大出力パワー: | 4.0 Kw | 保証: | 1年 |
| 冷却システム: | 空冷 | 始動方法: | 電動/手動 |
| 実行時間: | 6時間 | 開始Ytpe: | 反動 |
| 重さ: | 25kg | ||
製品の説明

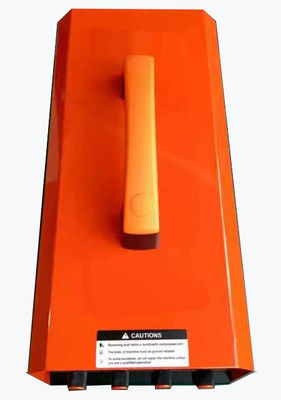

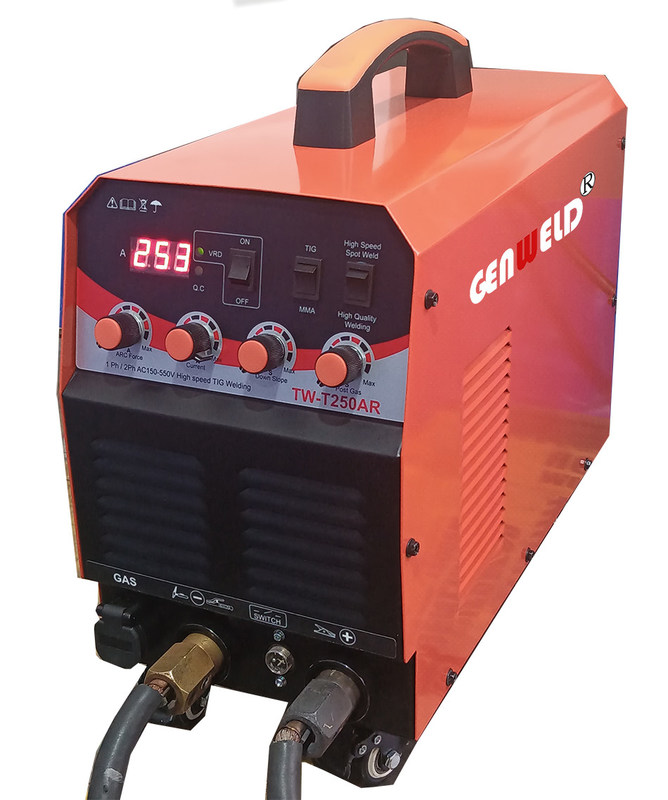

TW-T250AR DC TIG welding machine
Product model:
1. Wide voltage input 1ph/2ph 160~500V,
2. Maximum input power (TIG/MMA): 8.6/10.5kW,
3. TIG welding input current range: 10-250A, duty cycle 100%,
4. Manual welding input current range: 10-215A, duty cycle 80%, required current
Table shows 10-250A (virtual mark).
5. Manual welding: 4.0 electrodes can be continuously welded (duty cycle 100%/180A/27.2V)
6. Input power frequency: 60Hz,
7. Circuit breaker voltage: 62V,
8. 4 knobs on the panel: current adjustment/thrust adjustment/attenuation adjustment/lag gas adjustment,
9. Large chassis 435*203*420mm,
10. With high-speed argon arc welding (switch),
11. With VRD switch,
12. With wheels (2 with brakes, 2 without brakes), the wheels must be installed on the welding machine.
13. With buzzer alarm,
14. Machine cover LOGO die embossing,
15. Does not include power cord and plug, and can be assembled for free according to the supplier's requirements,
16. Packing size: 530*315*430mm.
