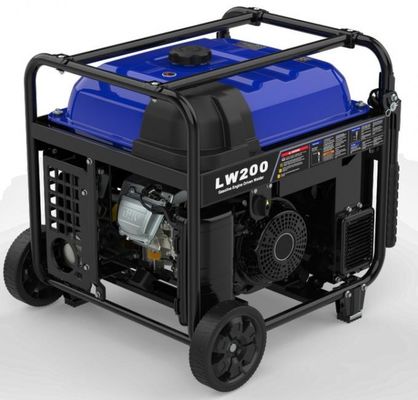

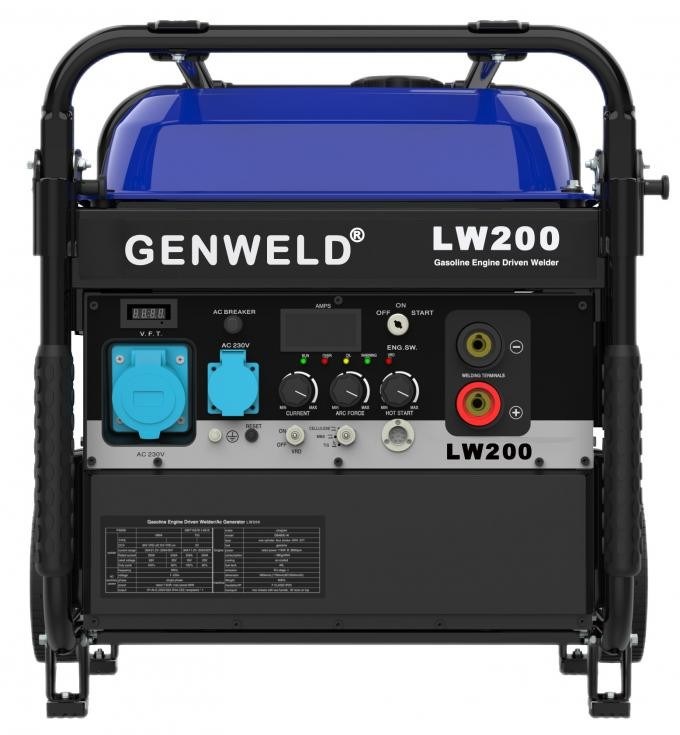

Industrial Rated 250A Engine Driven Arc Welder with 7.5kW Auxiliary Power and 32L Fuel Capacity
商品の詳細:
| 起源の場所: | 重慶、中国 |
| ブランド名: | GENWELD |
| 証明: | CE |
| モデル番号: | LWG250 |
お支払配送条件:
| 最小注文数量: | 5セット |
|---|---|
| 価格: | USD2000/Set EXW Factory |
| パッケージの詳細: | カートン寸法: 790×610×660mm |
| 受渡し時間: | 40% の前払いを受け取ってから 50 ～ 60 営業日 |
| 支払条件: | T/T |
| 供給の能力: | 1ヶ月あたり100セット |
|
詳細情報 |
|||
| 溶接 プロセス: | MMA、セルロース、TIG | 外形サイズ: | 600*560*600mm |
|---|---|---|---|
| 電極サイズ: | MMA:1.6-6.0mm、TIG:1.6-3.2mm | デューティサイクル: | MMA:250A/30V/60%; TIG:250A/20V/60% |
| 補助出力電力: | 120V/240V/60Hz/7.2kW(定格)、7.5kW(最大); 230V/50Hz/7.2kW(定格)、7.5kW(最大) | 燃料容量: | ガソリン 32リットル |
| ネット/総重量: | 114kg | 絶縁グレード: | F |
| ハイライト: | Industrial Rated Engine Driven Arc Welder,7.5kW Auxiliary Power Arc Welder Generator,32L Fuel Capacity Engine Driven Welder |
||
製品の説明
Product Description:
Introducing our industrial Engine-driven Arc Welder--LWG250, a powerhouse in the welding industry designed to meet your welding needs with precision and efficiency. This robust welder boasts a Fuel Capacity of 32 litres, ensuring extended operation without the need for frequent refueling, ideal for long welding sessions or demanding projects.
LWG-250 Engine-driven Arc Welder is mainly applied in wild welding without power grid and mulicipal water/gas pipeline emergency repairs, which features in compact structure, walking wheels, easy to move in site.
Specializing in the Arc Welding process, LWG-250 Arc Welder owns reliable and consistent welding performance, producing strong and durable welds with ease. Whether you are a seasoned welder or a beginner looking to hone your skills, LWG-250 Arc welder offers the versatility and power to handle a wide range of welding tasks.
LWG-250 Arc welder can withstand the rigors of welding environments,which is a reliable companion for professional welders and amateurs. Whether you are working on shipping building, oil/gas pipeline construction, steel structure projects, LWG-250 Arc welder will exceed your expectations and deliver exceptional results every time.
Features:
- Industrial multi-processes arc welder(MMA,Cellulose,TIG);
- Welding Current Range: DC 30A/21.2V~250A/30V(MMA/Cellulose), DC30A/11.2V~250A/20V(TIG)
- Auxiliary Output Power: AC rated7.2kW/120V/240V/60Hz, Max:7.5kW(Max);
- AC rated7.2kW/230V/50Hz, Max:7.5kW
- Large fuel tank, long running time:Welding: 150A/26V@11.8h, Power generating: 5.7kW@6.8h
- Compact structure and easy transport with walking wheels
Technical Parameters:
| Welding process | MMA, Cellulose, TIG |
| Welding current range | DC 30A/21.2V~250A/30V(MMA/Cellulose), DC30A/11.2V~250A/20V(TIG) |
| Electrode/Welding wire size | MMA/Cellulose electrode:1.6-6.0mm, TIG welding wire:1.6-3.2mm |
| Auxiliary Output Power | AC rated7.2kW/120V/240V/60Hz, Max:7.5kW(Max); AC rated7.2kW/230V/50Hz, Max:7.5kW |
| Engine Type | 4-Stroke |
| Fuel Capacity | 32 litres |
| Packing Size | 790x610x660mm |
| Net/Gross weight | 114/150kg |
Applications:
Ships, pressure vessels, steel structures, construction, petrochemicals, spiral pipe industry, machinery manufacturing, construction machinery, locomotives, aerospace, pressure vessels, shipbuilding, automobiles, bridges, electric power, railways, boilers, aluminum alloy industries, etc.
