| ハイライト: | 400A Welding Current Diesel Welder Generator,18.0KW Rated Power Diesel Welder Generator,80L Fuel Tank Capacity Diesel Welder Generator |
||
|---|---|---|---|
製品の説明
| Specification | LWXC - 400A | LWXC - 500A |
| Engine Model | WP2.3D25E200 | WP2.3D33E200 |
|
Engine Type |
In - line 4 - cylinder, closed - loop water - cooled | In - line 4 - cylinder, closed - loop water - cooled |
| Starting Method | DC12V electric start | DC12V electric start |
| Displacement | 2.289L | 2.289L |
| Bore × Stroke | 89x92mm | 89x92mm |
| Compression Ratio | 17.5:1 | 17.5:1 |
| Rated Frequency | 50HZ | 50HZ |
| Rated Power | 18.0KW | 28.0KW |
| Welding Voltage | 39.2V | 39.2V |
| Welding Current | 400A | 500A |
| Engine Oil Capacity | 6.5L | 6.5L |
| Fuel Tank Capacity | 80L | 80L |
| Noise | 70Dba/7m | 70Dba/7m |
| Dimensions (Length * Width * Height) | 1800x870x1200mm | 1800x870x1200mm |
| Net Weight | 720kg |
760kg
|

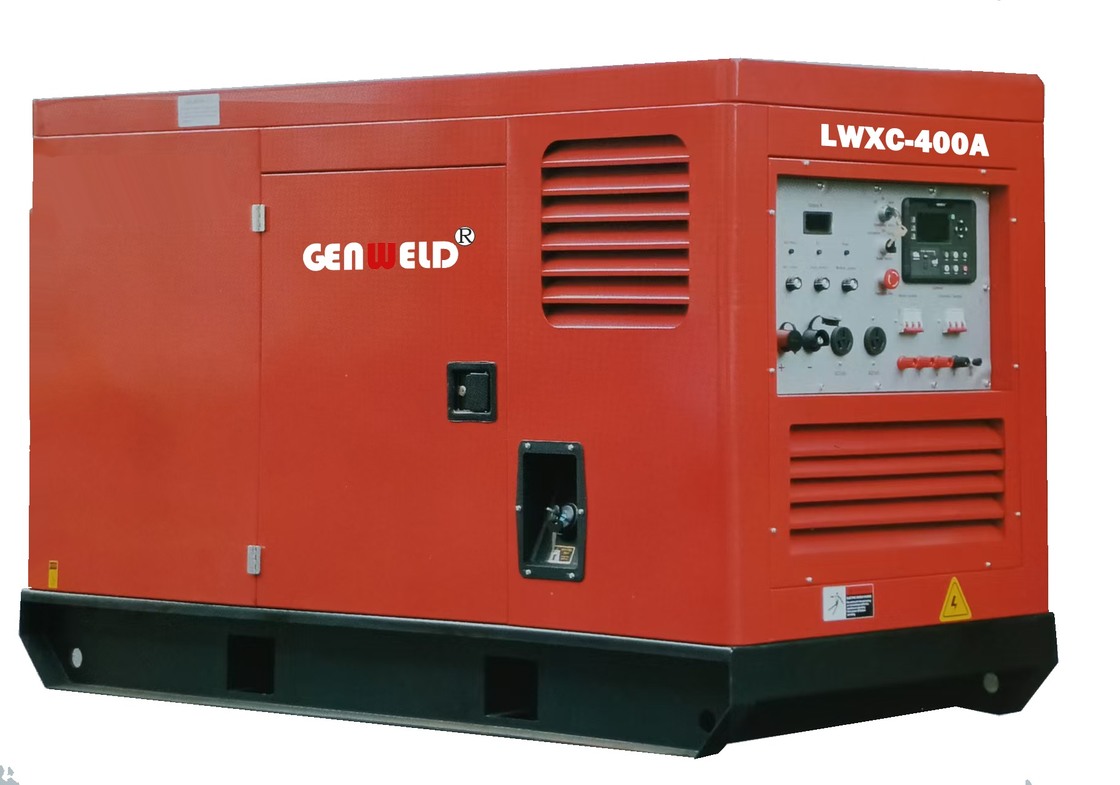

Diesel generator welding machine LWXC-400A
- High-density pure copper motor, stable and durable, long continuous working time, professional heat insulation and sound insulation cotton inside, good sound reduction effect.
- LCD screen, simple operation, intelligent monitoring, equipped with 80L large fuel tank, integrated use is more convenient.
- 3 Wide welding process, can weld 2.0-8.0 welding rods, faster heating, stable welding, energy saving, can be used in railways, gas pipelines, oil fields, emergency repair welding, cellulose welding and other scenes, can also power lighting equipment and other electrical appliances, one machine for multiple uses.
