詳細情報 |
|||
| ハイライト: | 2 wheel Diesel Portable Screw Compressor,Yuchai 140KW Engine Portable Air Compressor,17/15 m3/min FAD Screw Compressor |
||
|---|---|---|---|
製品の説明

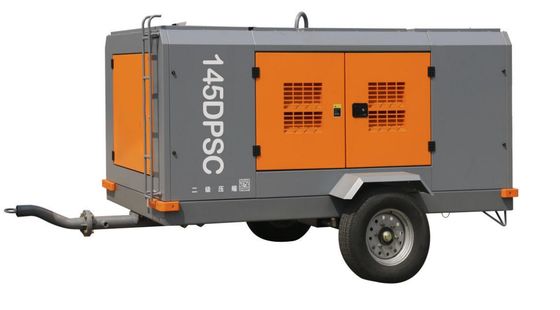

| Model | 145DPSC |
| China Ⅳ engine(standard) | Yuchai/140 KW |
| Diesel tank volume | 230 L |
| Air End | Two Stage Compression-2 wheel |
| Rated FAD | 17/15 m3/min |
| Rated Pressure | 12/18 bar |
| Weight | 2,900 kg |
| Type | 2 wheel |
| Dimensions(L×W×H) | 4,350×2,200×2,370 mm |
Rated Air Delivery (FAD): It offers two levels of rated free air delivery to adapt to different working requirements. The first level is 17 m³/min and the second level is 15 m³/min, ensuring efficient air supply for various pneumatic tools and equipment.
Rated Pressure: Corresponding to the two air delivery levels, it provides two rated pressure options. The first option is 12 bar and the second is 18 bar, which can meet the pressure demands of different high-pressure application scenarios.
Fuel Tank Capacity: Equipped with a large-capacity diesel tank with a volume of 230 L, it can store sufficient fuel to support long-term continuous operation, reducing the frequency of refueling and improving work efficiency on the jobsite.
Overall Dimensions: The compressor has a compact structural design with dimensions (Length × Width × Height) of 4,350 × 2,200 × 2,370 mm. This reasonable size balances the equipment's performance and space occupancy, making it easier to transport and place on different jobsites.
Weight: The net weight of the equipment is 2,900 kg, which ensures stable operation during work while still being manageable for transportation and installation with appropriate handling equipment.
