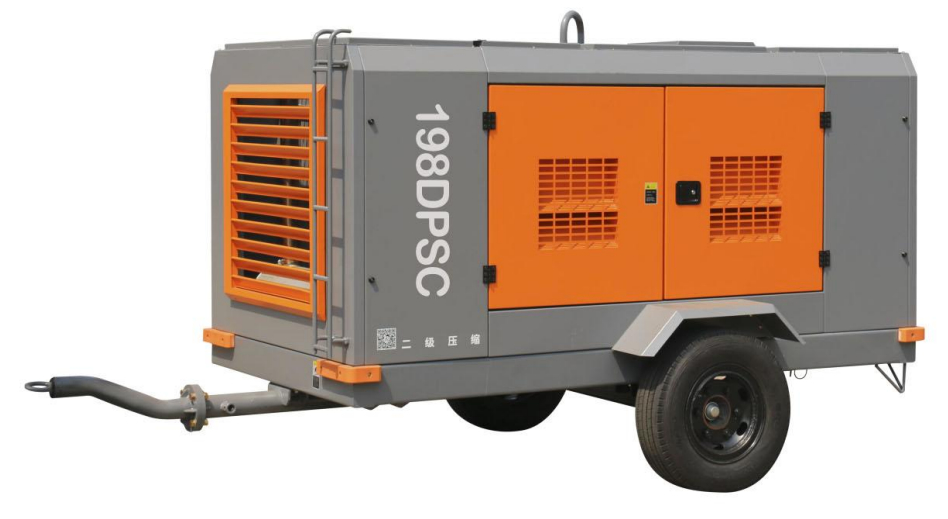

The 198DPSC portable diesel air compressor is a high-efficiency and heavy-duty equipment tailored to meet the intensive air supply demands of large-scale industrial jobsites, including heavy construction, mining exploitation, and large-scale machinery maintenance. With its robust power output and stable operating performance, it becomes an ideal choice for scenarios that require continuous, high-pressure, and large-volume compressed air supply. Here is a detailed introduction:​



Basic Parameters​

• Rated Air Delivery (FAD): It features a single rated free air delivery of 20 m³/min, providing a consistent and large-volume air supply to support the simultaneous operation of multiple high-demand pneumatic tools and heavy machinery, significantly improving on-site work efficiency.​

• Rated Pressure: Boasts a high rated pressure of 20 bar, which is capable of meeting the strict pressure requirements of high-intensity application scenarios such as deep mining pneumatic equipment and large-scale construction piling machinery.​

• Fuel Tank Capacity: Equipped with an extra-large diesel tank with a volume of 330 L, it can store ample fuel to sustain long-hour continuous operation. This reduces the frequency of on-site refueling, minimizing work interruptions and enhancing overall operational efficiency.​

• Overall Dimensions: The compressor adopts a well-proportioned structural design, with dimensions (Length × Width × Height) of 4,500 × 2,200 × 2,450 mm. This size ensures it has sufficient internal space for high-performance components while still being easy to transport and place in various jobsite environments.​

• Weight: The net weight of the equipment is 3,250 kg, which not only guarantees stable operation even under high-load working conditions but also remains manageable for transportation and on-site installation with the help of conventional handling equipment.​



Core Configuration​

• Engine: It comes standard with a China Ⅳ emission standard engine, specifically the Yuchai engine with a power output of 191 KW. This engine not only complies with national strict environmental protection regulations, reducing pollutant emissions, but also delivers strong and continuous power. It ensures the compressor operates efficiently and stably even when dealing with high-intensity, long-duration workloads.​

• Air End: Adopts a Two Stage Compression - 2 wheel air end design. The two-stage compression technology greatly improves air compression efficiency and ensures the output compressed air has high purity and stability. Meanwhile, the 2-wheel structure enhances the structural stability and wear resistance of the air end, effectively extending the service life of this core component.​

• Type: Classified as a 2 wheel type equipment, this design facilitates flexible movement and precise positioning of the compressor on the jobsite. It allows workers to quickly adjust the equipment's location according to the changing needs of on-site operations, improving the flexibility of on-site air supply.​
